Completed Inspection
What the completed inspection view shows — outcome banners, multi-party comparison table, PDF export, and audit trail.
An inspection reaches its completed state when every party has signed off and no item is left failed — a failure at any review step returns the record to the Performer for another cycle instead of completing it. This view shows the outcome, a comparison of all party verdicts, and options for export and audit.

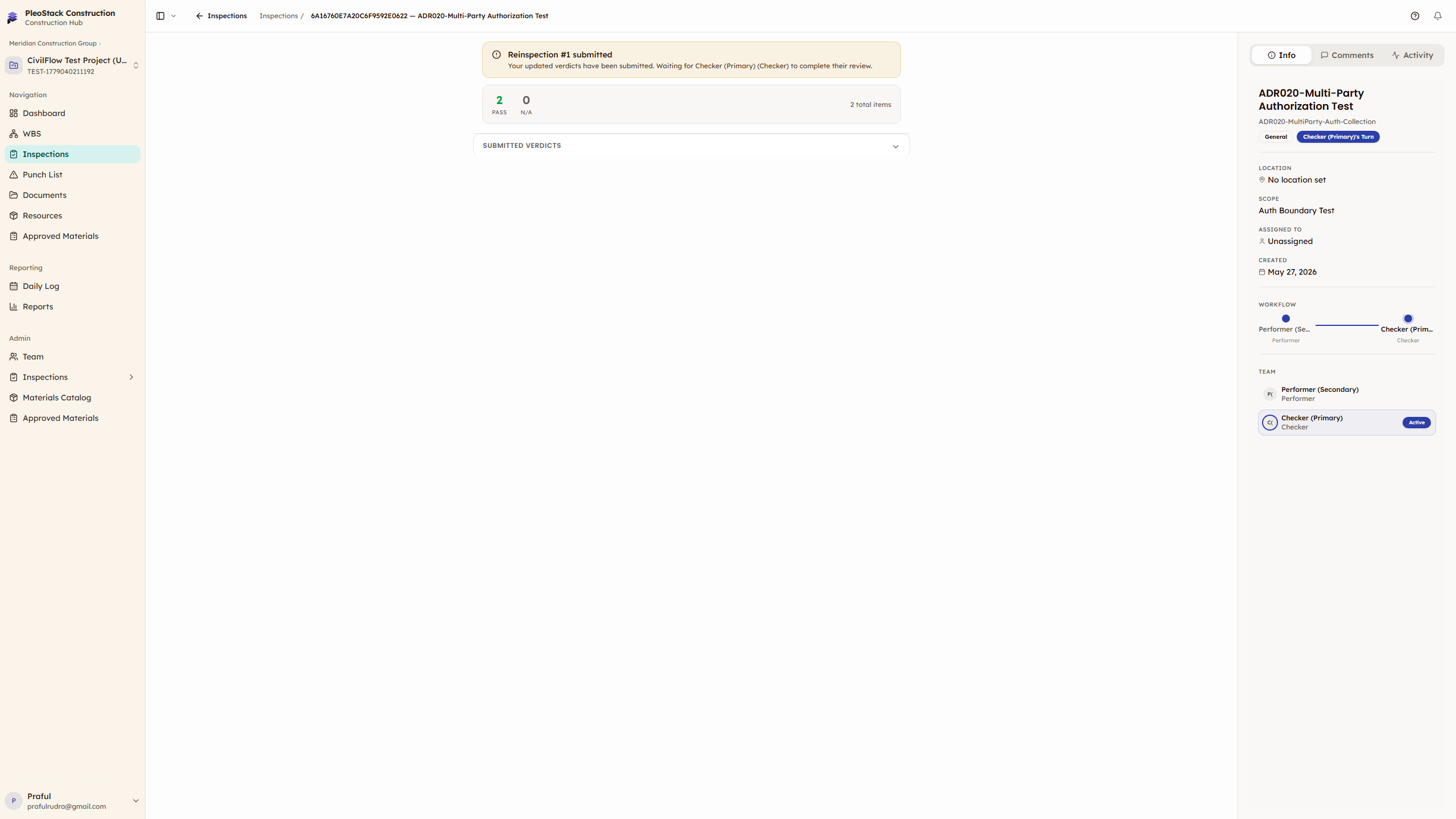

Outcome Banner
The top of the page shows the inspection result:
| Outcome | Color | Meaning |
|---|---|---|
| Pass | Green | Every item passed or was marked N/A across all parties. Inspection is complete. |
A completed inspection is always a Pass. There is no completed-and-failed state — while any item is failed, the record stays in progress with the Performer.
Statistics displayed:
- Total items inspected
- Pass / Fail / N/A breakdown per party
- Duration (start to completion)
- Reinspection count (how many cycles occurred)
Comparison Table
The completed view shows a multi-party comparison table — all party verdicts displayed side by side for each checklist item:
| Column | Content |
|---|---|
| Item | Checklist item label and section |
| Performer | Performer's verdict + notes + evidence |
| Checker | Checker's verdict + notes |
| Approver | Approver's verdict + notes |
Disagreements are highlighted — where parties gave different verdicts on the same item. This makes it easy to see where opinions diverged.
Sharing & PDF Export
Share completed inspection results or generate a downloadable PDF report:

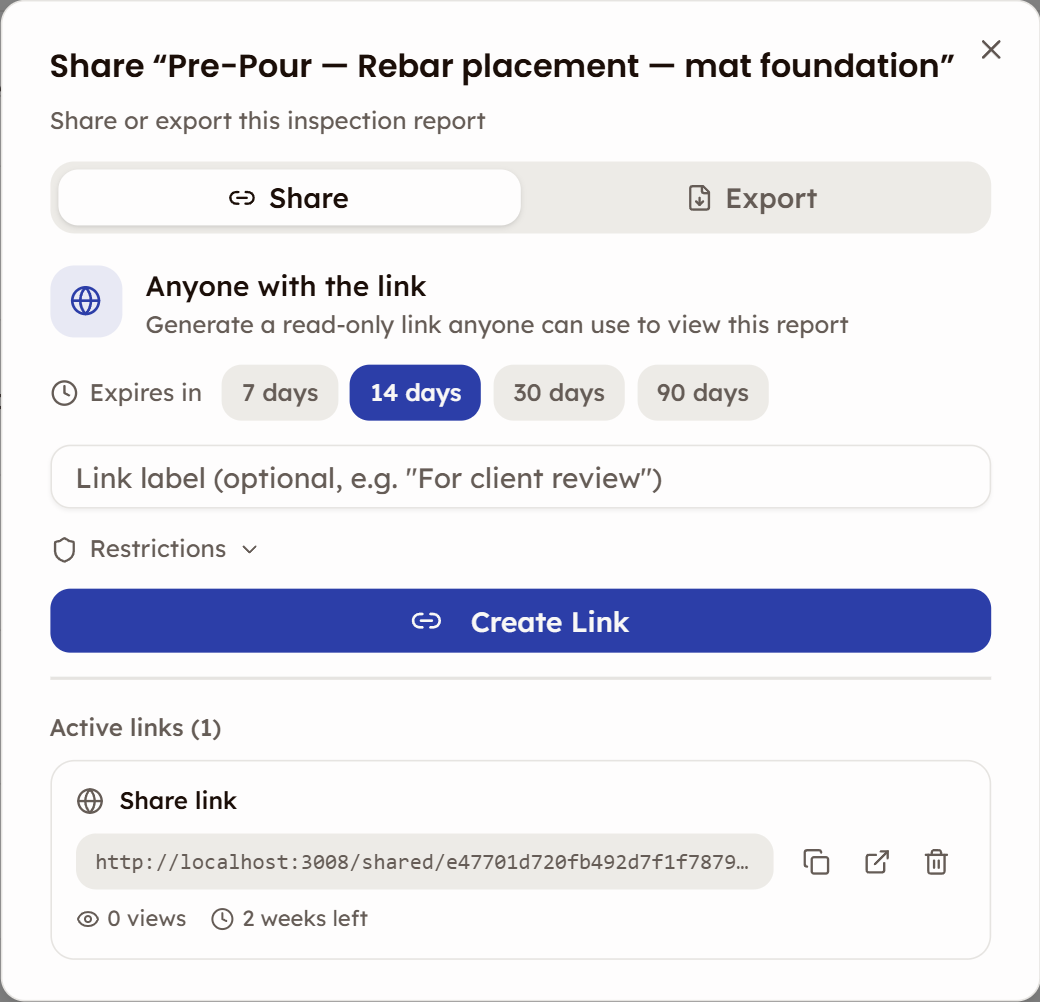

- Click Share in the outcome banner
- The Share dialog opens with link sharing options and an Export tab
- On the Export tab → click Download PDF to configure export settings:
- Checklist results (always included)
- Party sign-off details
- Scope / WBS items
- Issues
- Evidence attachments
- Activity log (with detail level)
- Click Download PDF → the report generates
The PDF includes the project header, all verdicts with party attribution, embedded photos, a location record listing the coordinates captured with each verdict, and the sign-off record for each party (name and submission timestamp).
PDF exports are useful for client reporting, regulatory compliance records, internal quality audits, and archiving completed inspections.

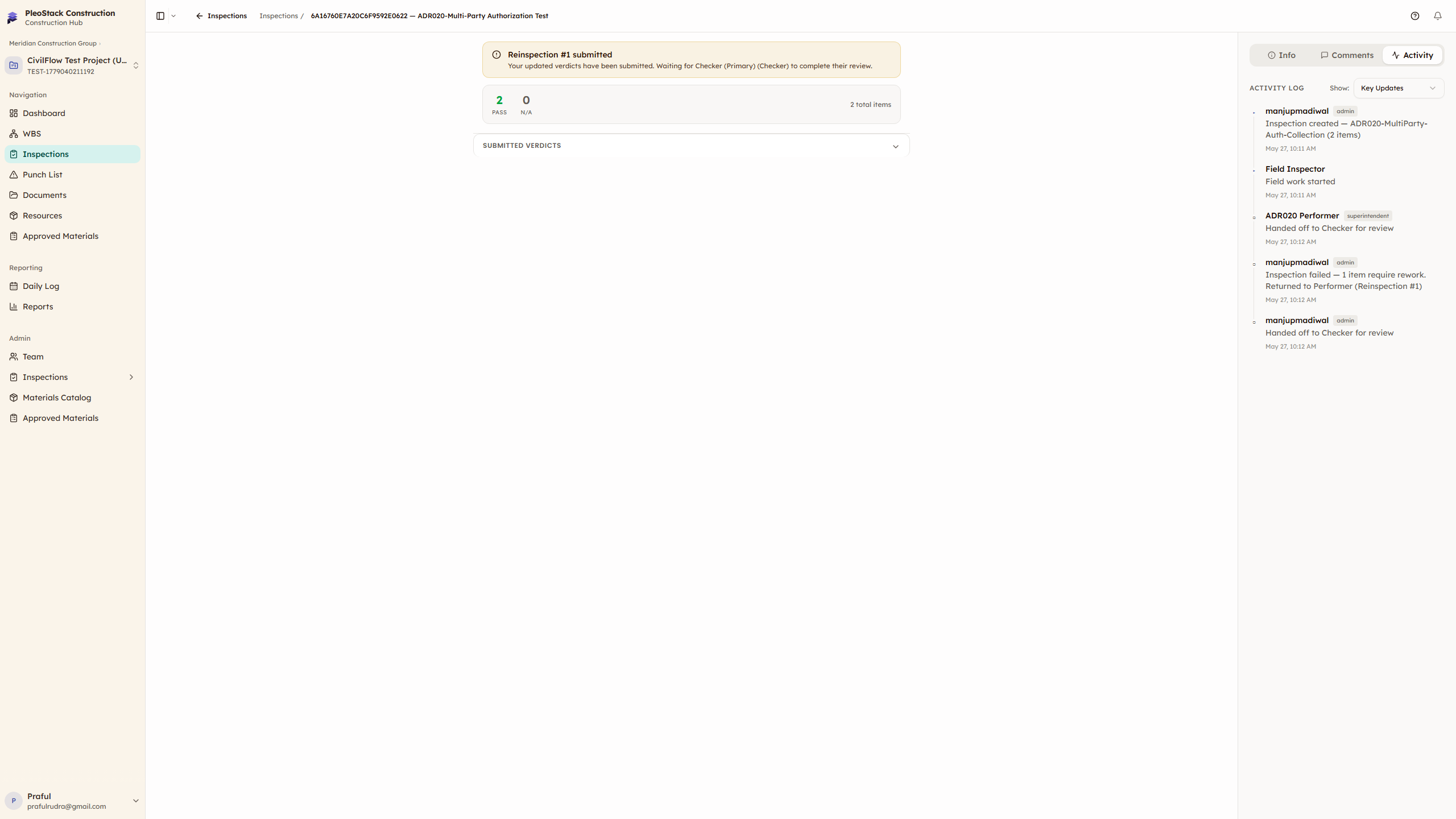

Audit Trail
The activity log records every significant event in the inspection's history:
| Event Type | What It Records |
|---|---|
| Created | Who created the inspection and when |
| Started | When the performer began |
| Verdicts | Individual item verdicts with timestamps |
| Submissions | When each party submitted their review |
| Approvals/Rejections | The approver's decision |
| Reinspections | When and why cycles occurred |
| Issue auto-closure | When reinspection closed the issues raised from failed items |
Access via the Activity tab in the info panel (right sidebar). Events are shown in reverse chronological order.
The audit trail is immutable — events cannot be edited or deleted after recording.
After Completion
| Action | Available | Description |
|---|---|---|
| Export PDF | Always | Generate a downloadable report |
| Share link | Always | Create a password-protected, expiring link to the report |
| View audit trail | Always | See the complete event history |
| View issues | If any exist | See linked defect items |
Next Steps
- Reinspection — What happens when an inspection is sent back
- Issues — Managing defects from failed items
- Inspections Hub — Back to the list view
