Material Detail Page
What you see inside a material's detail view — budget, stock stats, usage history, deliveries, and adjustments.
- Click any material row in the Inventory tab to open its detail page
- Left panel: Material metadata — name, spec, category, unit, budget rate, planned quantity
- Stats cards: Current stock, total delivered, total consumed, total cost
- Budget progress: Visual bar showing cost against budget
- Tabs: Usage, Deliveries, Adjustments, Tests (QC records)
- Inline editing: Budget rate and planned quantity can be edited directly
Full Guide
Navigating to a Material
Click any row in the Inventory table to open its detail page. The URL changes to /dashboard/resources/[materialId].
The page has a back button (← Resources) in the header to return to the Inventory tab.
Left Panel (Material Info)
The left side shows the material's core information:
| Field | Description |
|---|---|
| Name | Material name from the submittal |
| Specification | Grade or spec (e.g., M30, Fe500D 12mm) |
| Category | Material type badge |
| Unit | Measurement unit badge |
| Budget Rate | Cost per unit (₹) — editable |
| Planned Quantity | Total expected need — editable |
Budget Rate and Planned Quantity can be edited inline — click the value, update it, and click Save.
Stats Cards
Four summary cards show key metrics:
| Card | What It Shows |
|---|---|
| Current Stock | Total delivered − total consumed ± adjustments |
| Total Delivered | Sum of all approved delivery quantities |
| Total Consumed | Sum of all usage log quantities |
| Total Cost | Sum of all approved delivery costs (₹) |
Budget Progress
A progress bar below the stats shows how your actual costs compare to your budget:
Budget Calculation
Budget = Budget Rate × Planned Quantity
If costs exceed the budget, the bar changes color to indicate over-budget status.
Tabs
Usage Tab
- Chronological list of all usage log entries
- Each entry: date, quantity consumed, remarks, who logged it
- Immutable records — can't be edited or deleted
Deliveries Tab
- All deliveries for this material
- Each entry: date, vendor, quantity, cost, approval status
- Clicking a delivery navigates to its detail page
Adjustments Tab
- All manual stock adjustments
- Each entry: date, direction (add/remove), quantity, reason, who adjusted
- Immutable records

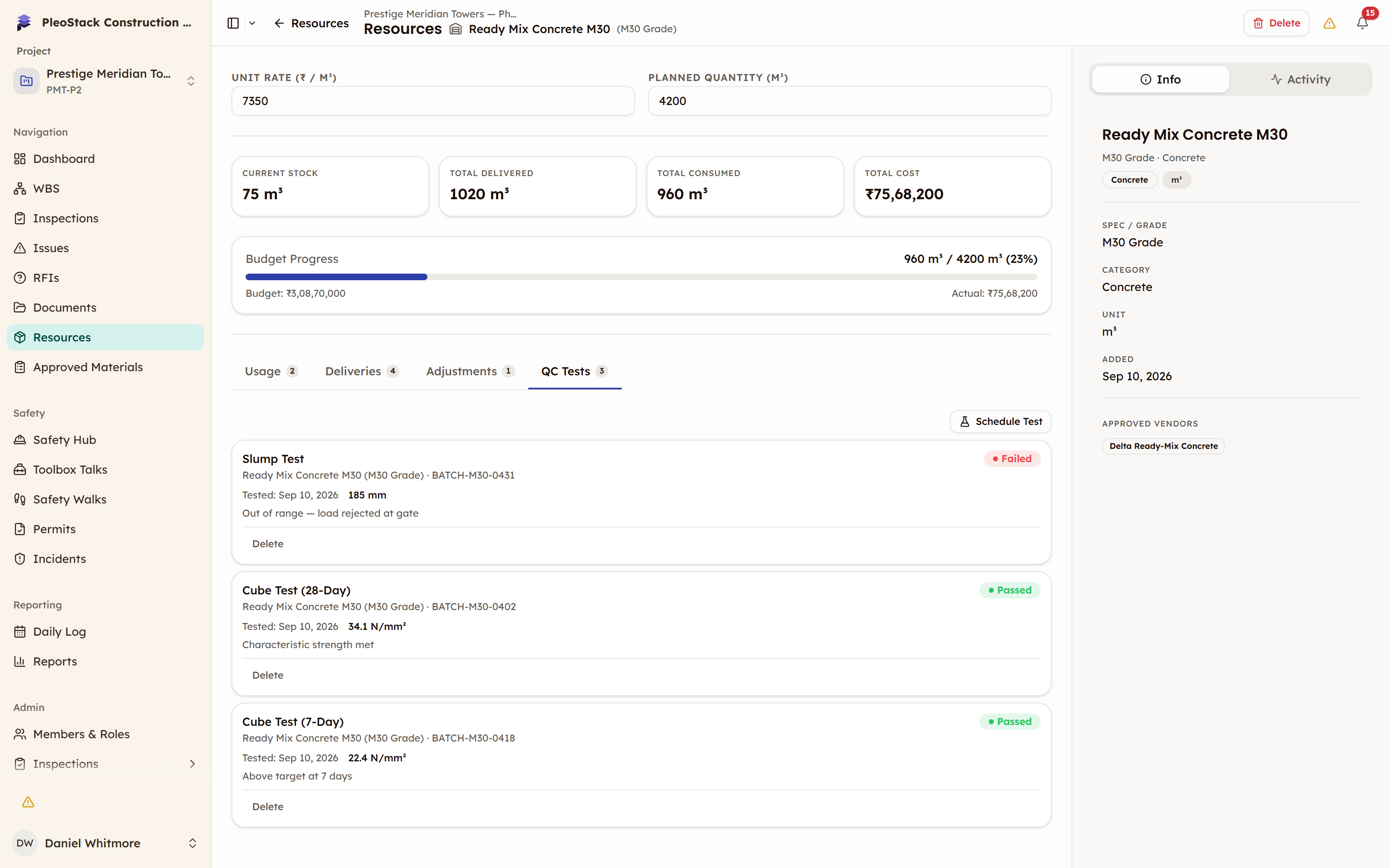

Tests Tab (QC Testing)
- Quality control test records for the material
- Each entry: test type, scheduled date, result, status (pending/passed/failed)
- Upload test certificates
Actions Available
| Action | Where | What It Does |
|---|---|---|
| Edit Budget | Left panel (inline) | Update rate and planned quantity |
| Log Usage | Usage tab or actions | Record material consumption |
| Adjust Stock | Actions | Manual stock correction |
| Back to Inventory | Header back button | Return to the inventory list |
